H.265/H.264 IPTV Encoder HDMI Video Encoder for IPTV broadcasting support RTMP RTSP ONVIF

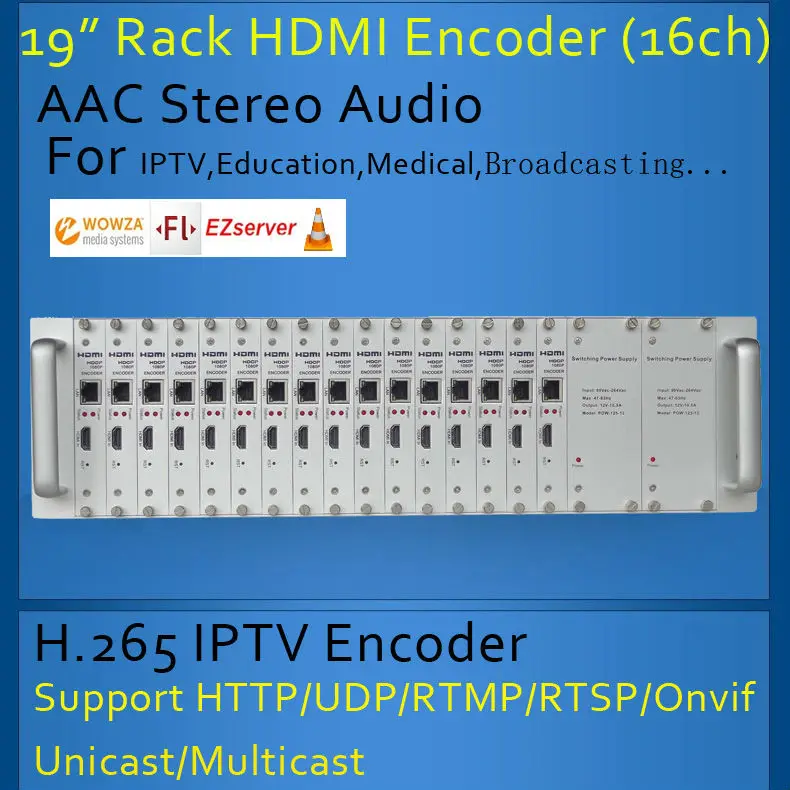

16CH Rack solution

Full HD HEVC and H.265 HDMI RTMP Encoder reducing 40% cost of IPTV Bandwidth

H.265/H.264 IPTV Encoder HDMI Video Encoder adopts newest efficient H.265 HEVC HD digital video compressed format, which is stable and reliable, with high definition, lower bit rate, and lower latency. The HD HDMI signal input will be encoded and compressed by DSP chip, and will output standard TS streaming. This H.265 HDMI video encoder can replace the traditional capture card, with hard compressing, which make the system more stable. It can be widely used on demands of capturing higher resolution, higher frame rate on HD video, and distributing the videos by IPs and internet. Besides, It can work as live video streaming encoder for different industries conveniently because of powerful extendibility.This encoder is mini dimensions only 16.5 X8.5X2.5CM, portable, stable, and energy saving only 5W based on industrial precision designing.

  • Hard compressing ( HEVC encoder )
  • Support H.265 high efficient video encoding
  • H.264 BP/MP/HP
  • H.265 Main Profile
  • Support AAC G.711 advanced audio encoding format
  • CBR/VBR/ABR Bit rate control , 16kbit/s-16Mbit/s
  • Support Network interface full-duplex mode 1000M
  • Support 1 channel HDMI input, also supports VGA input via HDMI converter
  • Support up to 720P, 1080P HD video input
  • Support HDCP protocol and HD blue-ray
  • Support protocol HTTP, UTP, RTSP, RTMP, ONVIF
  • Clean WEB dashboard, Chinese and English are optional.
  • Able to access the dashboard remotely by LAN;
  • Support the double streaming output, main streaming + second streaming
  • The main stream and the second stream can be set by different protocols separately;
  • Be able to select different streaming resolution.
  • Be able to load text water marks on streaming video with adjustment on fonts and position by X,Y Coordinating
  • Support photo watermarks on streaming video
  • Support one key to reset
  • Compatible with decoding on Set Top Box
  • Energy saving
  • Support video and audio preview, can find the error at any time.

Video

Input

1x HDMI( 1.3a) HDCP

Supports HDMI Resolution

1920x1080P/1080i/720P @50/60Hz and below

Encoding

H.264/H.265

Data Rate

16-12000Kbs

Rate Control

CBR/VBR

GOP Structure

5-200

Advanced Pretreatment

De-interlacing, Noise Reduction, Sharpening

Audio

Encoding

AAC

Sampling rate

Auto

Bit-rate

48K/64K/96K/128K/160K/192K/256

Sampling precision

24 bit

Data Rate

64Kb/s~384Kb/s

System

Ethernet

1000 Base-T Ethernet interface

Protocol

HTTP unicast/multicast;RTSP;RTMP

Control Interface

WEB-192.168.0.31/indexE.html

Others

Dimension (W× L× H)

165*85*24mm

Weight

0.3kg

Temperature

0-45(work),-20-80(storage)

Power

12V/DC

Consumption

5W

  • As HD encoder for IPTV
  • Digital HD/SD streaming sever.
  • Video conference
  • Replace HD Video Capture Card
  • Hotel cable TV system
  • live and recording broadcast for operating room.
  • live and recording broadcast for education
  • Digital HD live and recording broadcast for courtroom.
  • Access to network monitoring platform, support recording broadcast
